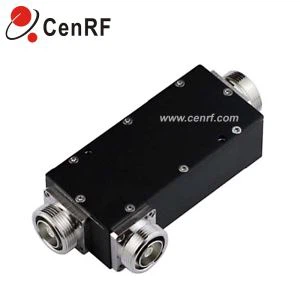

Direksyonèl koupleur 698-2700MHz 4.3-10 Fi
Segondè pouvwa Pote
4.3-10 fanm Connecters
Voye rechèch
Product Details ofDireksyonèl koupleur 698-2700MHz 4.3-10 Fi
Karakteristik prensipal
Inser Low Pèt ensèsyon, Low PIM VSWR ki ba
. Lage gwo pouvwa
-10 4.3-10 fanm Connecters
Espesifikasyon elektrik | |||||
Frekans Range | 698 - 2700 MHz | ||||
Kouti (dB) | 5 6 7 10 15 20 30 40 | ||||
Pèt ensèsyon (dB) | ≤2.15 ≤1.7 ≤1.4 ≤0.8 ≤0.5 ≤0.3 ≤0.3 ≤0.3 | ||||
| In-band Ripple (dB) | ± 1.0 ± 1.0 ± 1.0 ± 1.0 ± 1.2 ± 1.2 ± 1.5 ± 1.5 | ||||
PIM (IM3) | ≤-150dBc @ 2x20W | ||||
| Retounen Pèt / VSWR | ≤ -19dB / 1.25 | ||||
| Direktivite | ≥20dB | ||||
Power Handling | 500W | ||||
Enpensans Antre | 50Ω | ||||
Espesifikasyon anviwònman yo | |||||
Operating Tanperati | Deyò oswa Andedan kay la, IP65 | ||||
Imidite relatif | 5 a 95% | ||||
Operating Tanperati | -40 a + 70 ℃ | ||||
Espesifikasyon mekanik | |||||
Kalite Connector | 43.-10 Fi | ||||
Materyèl | Twou: aliminyòm; Connector: Copper | ||||
Pwosesis | An ajan plake anndan kondiktè | ||||
Pwa | 0.68Kg @ 5/6/7/10 / 15dB; 0.58Kg @ 20/30 / 40dB | ||||
Dimansyon | 200.5x68.8x32mm @ 5/6/7/10 / 15dB; 150x69x36mm @ 20/30 / 40dB | ||||

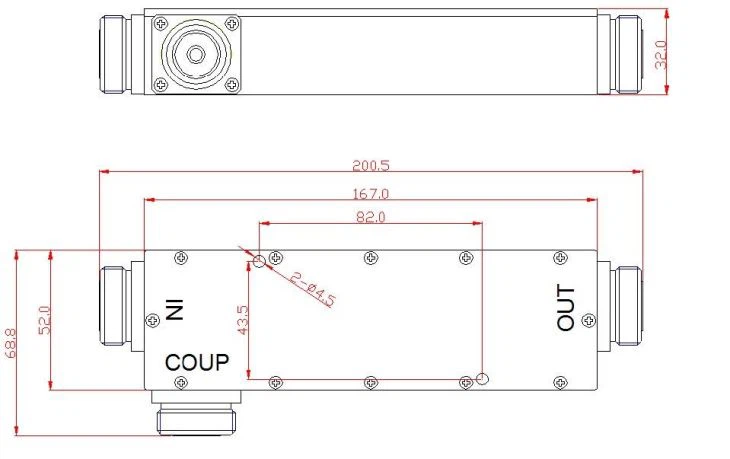

Dimansyon
5dB, 6dB, 7dB, 10dB, 15dB:
20dB, 30dB, 40dB:
